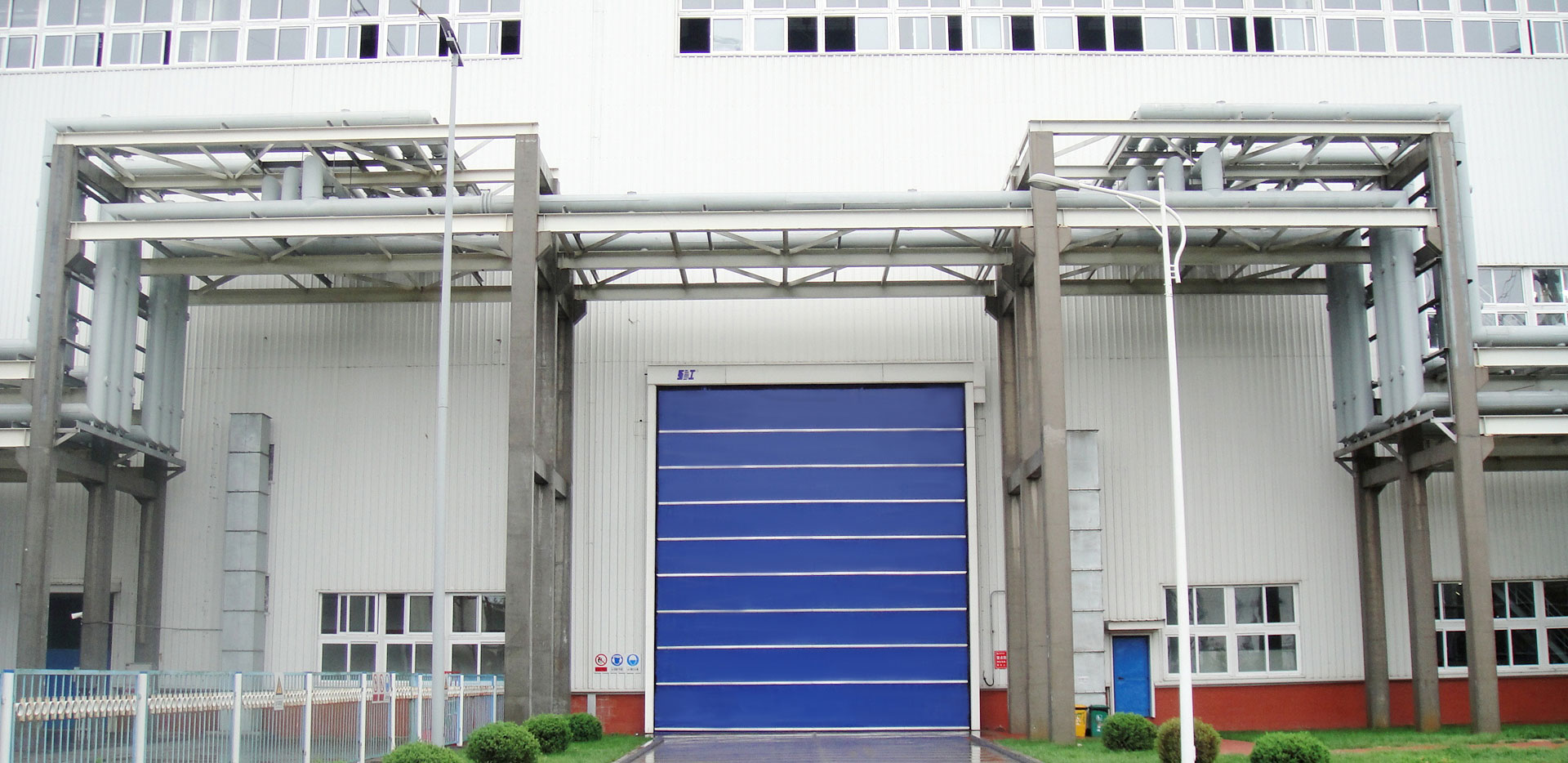

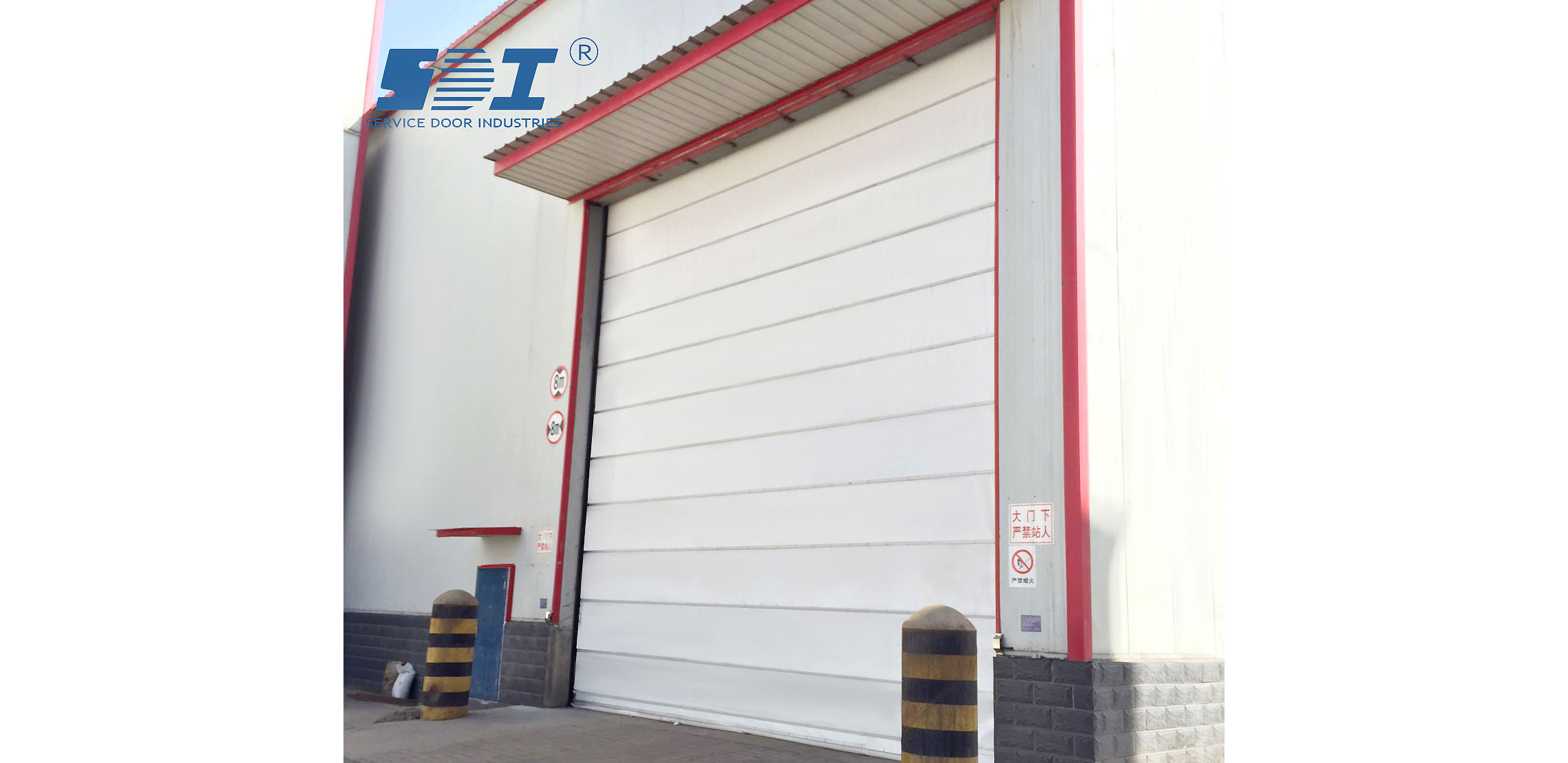

Stacking door

SDI motor, power range 1.6-2.5KW, 220v/50Hz, IP 55 equipped with high-efficiency bass reducer, strong braking torque, and long service life. The motor is replaced free of charge for life. The patternless galvanized sheet is 1.5-2.0mm thick with a Plato PVC double layer coating base, with a thickness of 0.8-1.0mm and a transparent window with a thickness of 1.5-2.0mm. The thickness has a high wear resistance coefficient and a white gray color. It can withstand temperatures between -30-70 degrees Celsius, and both sides of the track are sealed with bristles, effectively preventing dust and insects. Achieve good sealing and wind resistance effects.

Picture Specifications Technical attributes File Download


Specifications

Power configuration: SDI motor, power range 1.6-2.5KW, 220v/50Hz, IP 55 equipped with high-efficiency bass reducer, strong braking torque, and long service life. The motor is replaced free of charge for life.

Door frame

Plain galvanized sheet 1.5-2.0mm thick

Door curtain

High quality door curtain, with a thickness of 0.8-1.0mm and a transparent window of 1.5-2. The thickness has a high wear resistance coefficient and the color is white gray. Can withstand temperatures between -30-70 degrees Celsius

Door sealing performance

Both sides of the track are sealed with bristles, effectively preventing dust and insects. Achieve good sealing and wind resistance effects.

wind-resistant performance

This type of product is mainly suitable for large area door openings, with severe external wind pressure conditions, channels, strong wind resistance, greater than or equal to 10 levels. The wind resistant ribs are 1-inch galvanized iron pipes (thickness 1.5-2.0mm), suitable for stacked doors with a width of less than 6 meters or 30 * 30 galvanized square pipes (thickness 1.5-2.0mm), suitable for stacked doors with a width of more than 6 meters

Technical attributes

Clear Window

Imported fully transparent PVC soft glass, with a thickness of 1.5-2.0mm, rectangular, with functions such as transparency, aesthetics, and safe passage

Opening speed

Adjustable from 0.5 meters/second to 0.8 meters/second

Closing speed

Adjustable from 0.5 meters/second to 0.8 meters/second

Side guide rail

The dock door is operated by steel cables, with a maximum of two steel cables running inside the guide rails for each door. There are no kinks during cable installation, and the diameter of the pulley should be carefully selected to prevent any kinks or abnormal stress during cable operation.

Limit

Absolute value encoder

Power supply

220v/50HZ，220v/50HZ220v/50HZ220v/50HZ，220v/50HZ，220v/50HZ，

Switch Mode

Radar and three button, radar and three button, radar and three button, radar and three button, radar and three button, radar and three button, radar and three button, radar and three button

Control box configuration

The SDI servo control system is equipped with a Chinese LCD display screen and a Chinese obstacle display function, ensuring convenient maintenance and high-speed stable operation of the stacking door. The control system has an automatic power outage recovery function.
